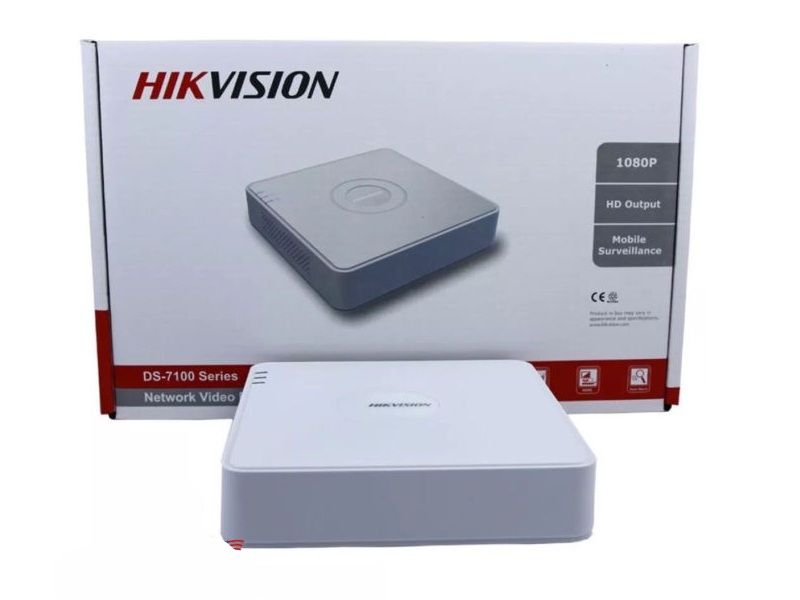

Hikvision DVR Kit (Box, Cameras & Accessories)

Video And Audio

• IP Video Input: Up to 16-ch Up to 1080p resolution Support H.264+/H.264 IP cameras
• Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: Reuse the first audio input
• Synchronous Playback: 16-ch
• VGA/HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections: 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: SATA
• Capacity: Up to 6 TB capacity for each disk
• Alarm In/Out: N/A
• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 12 VDC
• Consumption (Without HDD): ≤ 20 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
• Weights (Without HDD): ≤ 1.2 kg (2.6 lb)
